3-PC Ball Valves
Product Description

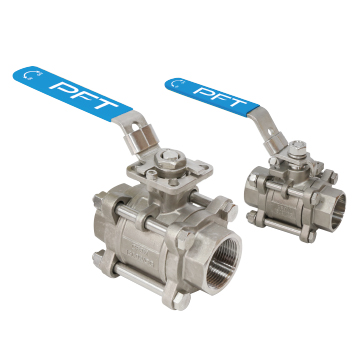

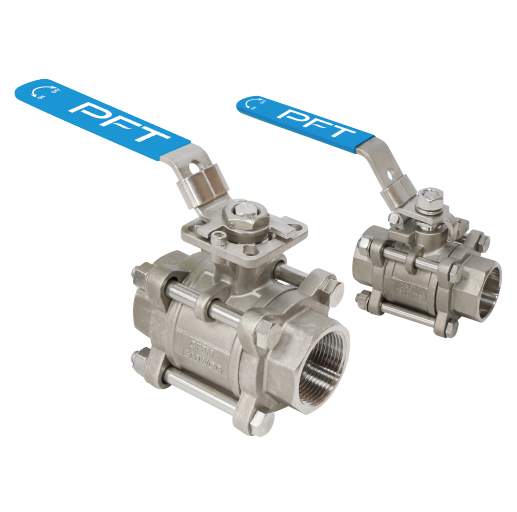

PB-3110M/PB-3110H
3 PC FULL PORT BALL VALVE THREAD END
PB-3110MFEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- ISO 5211 MOUNTING PAD
- NACE MR 01-75
- NPT THREADS：ANSI B 1.20.1
- PRESSURE RATING：1500 WOG ( 1/4”~2” )
1000 WOG ( 2-1/2”~4” )
ALL VALVES 100% TEST PRESSURE
SHELL 2250 PSI BY HYDROSTATIC ( 1/4”~2” )
SHELL 1500 PSI BY HYDROSTATIC ( 2-1/2”~4” )
SEAT 80 PSI BY AIR
PB-3110HFEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- ISO 5211 MOUNTING PAD
- NACE MR 01-75
- NPT THREADS：ANSI B 1.20.1
- PRESSURE RATING：1500 WOG ( 1/4”~2” )
1000 WOG ( 2-1/2”~4” )
ALL VALVES 100% TEST PRESSURE
SHELL 2250 PSI BY HYDROSTATIC ( 1/4”~2” )
SHELL 1500 PSI BY HYDROSTATIC ( 2-1/2”~4” )
SEAT 80 PSI BY AIR
specification
| Size Range | DN8-DN100 (1/4"-4") |
|---|---|
| Configurations | 2-way 3-piece Full Port |
| End Connections | ISO 7/1, ISO 228/1, BS21 (ANSI B1.20.1) |
| Pressure Rating | PB-3110M/ PB-3110H DN8-DN50 103 Bar (1500 psi) DN65-DN100 63 Bar (1000 psi) |
| Body Materials | 1.0619, 1.4408 (CF8M/ WCB) |
| Seat Materials | PTFE, RPTFE |
| Pressure Test | EN12266-1 (API-598) |
