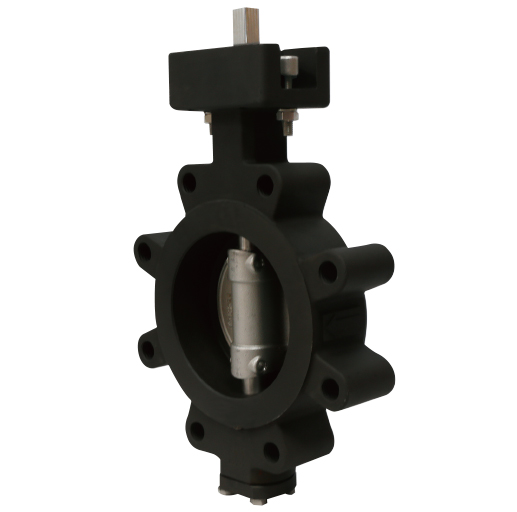

Double Eccentric Butterfly Valves
Product Description
P2-BL16/ F2-BL15
Double Eccentric Butterfly Valves
P2-BL16 / F2-BL15FEATURES & SPECIFICATIONS
- ISO 5211 MOUNTING PAD
- FACE TO FACE：ANSI B16.10
- FLANGE DIMENSIONS：DIN2633 / ANSI B16.50
- PRESSURE RATING：PN16 / ANSI 150#
ALL VALVES 100% TEST PRESSURE
SHELL 350 / 425 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
specification
| Size Range | DN50-DN300 (2"-12") |
|---|---|
| Configurations | 2-Way 1-Piece Lug Type Full Port |
| End Connections | DIN2633, ANSI B16.50 |
| Pressure Rating | P2-BL16 16Bar/ F2-BL15 275PSI |
| Body Materials | 1.0619, 1.4408 (CF8M/ WCB) |
| Seat Materials | TFM |
| Pressure Test | EN12266-1 (API-598) |
